EINBREW 3V3P
ELECTRIC NANO BREWERY CONTROLLER
UK Designed, UK Manufactured, UK Supported.
Running your own electric nano brewery is easy with EINBREW 3V3P. Full concurrent management and temperature control for 3 vessels and 1, 2 or 3 pumps - back to back brewing.
The 3V3P lets you program up to 9 mash step temperatures and times as well as up to 9 hop insertion times - it precisely controls the complete brewing process for you.
Electronic controller, complete with three relays, either 25A or 40A per relay/element. The 25A model can handle 5.75kW (@230V) per relay, the 40A model can handle 9.2kW (@230V) per relay.
Supports three high current heating elements (concurrent use), and up to 3 pumps CE and LVD compliant. Professional installation advised.
In the box you get 1x controller, 1x 2m power lead, 3x PT100 temperature sensors with 3m leads, 3x (either 25A or 40A) relays with heatsinks and their control leads, 3x C13 pump connectors, USB lead and installation instructions.

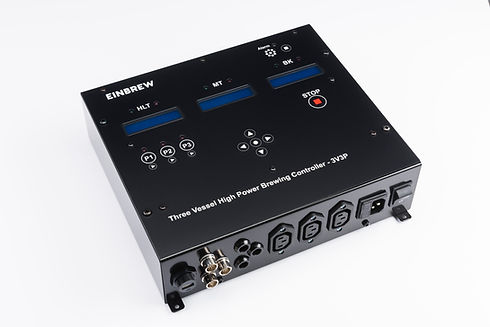

Controller is power coated steel, 300x260x80mm, with integral wall mounting brackets.
Up to 3 heating elements
40A/230V each
Automatic Mash and Boil Management
Back to Back Brewing
Support
Robust, Reliable, Safe
CE/LVD Certified Control
CUSTOM CONTROL IN YOUR HANDS
Unlike competitor systems and off-the-shelf parts, EINBREW 3V3P is a dedicated 3-vessel controller that is specially designed for brewing.
It helps you manage the brewing process as you go along, with multiple mash stages, grain rests and hop insertion alarms as well as managing mash in and boil.
We support up to three pumps and heating elements so that you can brew back-to-back to maximise the throughput from your equipment, along with supporting flexible current requirements for larger high power heating elements.
HOW IT WORKS
EINBREW EBC offers the best all-in-one control solution for 3-vessel nano brewing; everything you need to make the greatest beer around.
-
Custom controller lets you setup your brewing recipe before you start, with support for up to 9 mash stages and 9 hop insertions.
-
Compatible with wall or stand mounting so it can be placed at a convenient working height.
-
Automatically controls to your set temperatures, and rests for the time you define. Custom control algorithm helps to prevent overshoot and oscillation.
-
Temperatures and stages times can be adjusted on-the-fly when brewing, if you notice that things need to change. Also manages cooling stage.
-
Includes a temperature measurement probe for each vessel (3 in total).
-
Control each vessel independantly for back-to-back brewing support to maximise throughput.
EINBREW FEATURES
CONTROLLER
Looks after your wort and keeps to your recipe. Alarms for mash-in, mash-out, boiling, hop insertions and cooling.
ENERGY EFFICIENT
Microcontroller temperature control for heating and cooling ensures maximum brewing efficiency.
CLEANING CYCLE
Easily heat water in each vessel for cleaning purposes, without having to go through a whole brewing cycle!
WORT CREATION
Up to 9 mashing stages allows you to customise your brewing process with multiple grain rests at different temperatures.
SUPERIOR DESIGN
Not only looks great, but designed for easy modular installation. Splash proof fascia.
EASY DISPENSING
Independent triple pump control allows you to manage circulatory pumps and pumping between vessels/to fermentation as needed.
MINIMAL & SMART DESIGN
No unnecessary clutter with minimalist interface and controls. Reduced space overhead helps you manage your brewery.
Display each vessel's temperature on-screen simultaneously and view status at a glance. Simple recipe setup with additional options menu.
Sleek steel black powder-coated surface, with splash proof fascia.
Flexible to work with both RIMS and HERMS brewery setups and a variety of different elements and pumps.
